Flood Intelligence

The H2O.ai Flood Intelligence blueprint integrates and extends the NVIDIA NeMo Agent Toolkit with H2O.ai’s Enterprise GPTe platform to deliver real-time flood forecasting, risk assessment, and emergency response automation.

This blueprint demonstrates how multi-agent AI workflows combined with authoritative hydrological and meteorological data sources can provide governments, utilities, insurers, and emergency managers with actionable intelligence for disaster preparedness. The system is designed for enterprise and sovereign deployment, ensuring scalability, security, and compliance for mission-critical use cases.

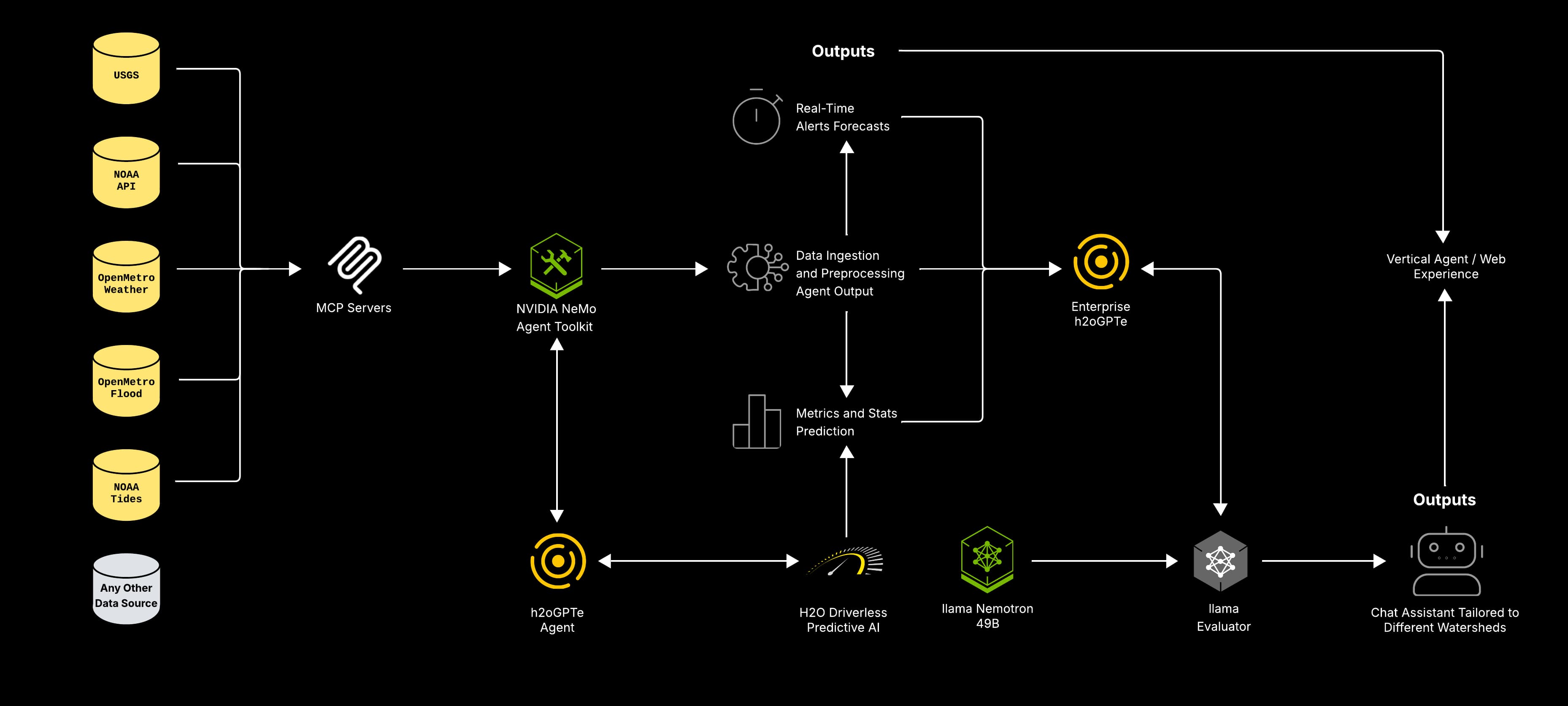

Architecture Diagram

What’s Included in the Blueprint

NVIDIA NeMo Agent Toolkit Integration

The blueprint leverages NeMo Agent Toolkit to orchestrate multi-agent workflows for flood prediction and risk management.

• Risk Analyzer Agent: * Calculates flood risk scores, analyzes trends, and evaluates weather impacts using LLM-powered reasoning.
• Predictive Intelligence Agent: * Performs ensemble-based flood forecasting from 1-hour to 7-day horizons.
• Emergency Coordinator Agent: Automates alerts, evacuation planning, and resource allocation.

This repo contains all the latest code for the H2O.ai Flood Intelligence Blueprint: https://github.com/h2oai/h2oai-flood-intelligence-agent

The integration highlights four key areas:

• Workflows are YAML-configured using React Agent patterns with NVIDIA NIM microservices (e.g., Llama-3.1-Nemotron-70B-Instruct).
• h2oGPTe Agent and NVIDIA NeMo Agent Toolkit integration
  • Demonstrates agent-to-agent orchestration for AI workflows
• Chat Assistant with RAG Pipeline in h2o GPTe and NVIDIA Nemotron 49B nvidia/llama-3_3-nemotron-super-49b-v1_5
  • Combines H2O’s RAG pipeline with NVIDIA Nemotron LLM for domain-specific Q&A.
• Chat Assistant with NVIDIA NeMo Evaluator
  • Enables evaluation and benchmarking of chat interactions with NVIDIA NeMo Evaluator.

H2O.ai Enterprise GPTe Integration

h2o GPTe provides enterprise-grade generative AI capabilities with sovereign deployment options.

• Agentic AI: Complex reasoning and automation via multi-agent orchestration
• Retrieval-Augmented Generation (RAG): Grounded analysis from private flood datasets
• Document AI: Schema-driven JSON generation for compliance and auditability
• Dynamic Model Routing: Optimizes for accuracy, latency, and cost across multiple LLMs
• Streaming & Async Inference: Real-time interactive analysis for monitoring dashboards

Key Features

• Real-Time Monitoring: Ingests data from USGS, NOAA, and global flood/weather APIs.
• AI-Powered Forecasting: Multi-model flood predictions from 1-hour to 7-day horizons.
• Risk Assessment: LLM-powered agents calculate flood risk scores and identify trends.
• Emergency Response: Automated alerts, evacuation planning, and resource coordination.
• Unified Dashboard: Interactive maps, trend visualizations, and AI-driven insights.

Minimum System Requirements

The solution leverages NVIDIA's cloud-based API Catalog endpoints, eliminating the need for local GPU hardware. All model inference is performed on NVIDIA's cloud infrastructure.

To run NVIDIA Nemotron 49B locally, a single GPU such as NVIDIA Ampere or NVIDIA Hopper is recommended.

Software used in this blueprint

• NeMo Agent Toolkit
• RAG Pipeline in h2oGPTe and NVIDIA Nemotron 49B nvidia/llama-3_3-nemotron-super-49b-v1_5
• NVIDIA NeMo Evaluator
